Geological History and Hong Kong Rocks

Palaeozoic to Mesozoic Pre-volcanic Period

About 1,000 million years ago, the continental basement of Hong Kong (the Cathaysia Block) collided with the Yangtze Block in a convergent margin tectonic setting.

By about 600 million years ago, a large part of southeastern China was submerged beneath a shallow continental sea.

By 400 million years ago, sediments from rivers and their deltas were being deposited in the Hong Kong region. These sediments now form the oldest rocks in Hong Kong, which are sedimentary rocks of the Devonian Bluff Head Formation. Tectonically, the area was relatively stable.

Conglomerate of the Bluff Head Formation

Devonian Bluff Head Formation - conglomerate and sandstone
(around 410 to 360 million years ago)

Devonian rocks occur at two main locations in Hong Kong: on the northern shore of Tolo Channel and at Ma On Shan. They include layers of conglomerate and sandstone. Fragments of fossil fish (placoderm) were discovered in 1980 in the sedimentary rock layers at Harbour Island and thus confirmed the Devonian age of the rocks. The Devonian conglomerates are white in colour and contain rounded pebbles of quartzite set in a matrix of coarse quartz-rich sand. The sediments were deposited in fluvial and deltaic environments.

Over the following 50 to 70 million years, the area was submerged beneath a warm shallow sea in which calcareous muds were deposited. These deposits are preserved in Hong Kong as marble beneath Yuen Long.


By about 300 million years ago, the region had become a deep continental sea.

Marble of the Yuen Long Formation

Carboniferous Yuen Long Formation - Marble
(around 360 million years ago)

Marble occurs in the northwest New Territories. It is not exposed at the surface, but is buried beneath thick sediments on the Yuen Long Plain. The marble is metamorphosed limestone, which was originally deposited in a warm and shallow sea environment. Pure marble contains more than 95% crystalline calcite minerals that are readily dissolved by weakly acidic groundwater . Solution cavities occur in the marble, which have resulted in the development of a karst topography (now buried).

Graphite schist of the Lok Ma Chau Formation

Carboniferous Lok Ma Chau Formation - Quartizite and graphite schist
(around 340 million years ago)

The Lok Ma Chau Formation is distributed in the northern New Territories. It comprises mainly metamorphosed sedimentary rocks, including meta-conglomerate, meta-sandstone, meta-siltstone, quartzite and graphite schist. Quartzite is composed mainly of recrystallised quartz with some tiny flakes of sericite, mica. Graphite schist is dark black in colour and shows well developed metamorphic foliation . The sediments were deposited on a tidal flat or as a deltaic fan.

Skarn

Marble & Skarn - Contact metamorphic rocks

Skarn is a contact metamorphic rock formed by the alteration of carbonate-bearing sedimentary rocks (such as marble) adjacent to an igenous intrusion. It comprises calcium, magnesium and iron silicate minerals. The Ma On Shan iron ore is hosted in skarn rocks and contains iron- and magnesium-bearing minerals, such as magnetite and haematite.

Siltstone of the Tolo Harbour Formation

Permian Tolo Harbour Formation - siltstone and mudstone
(around 300 to 250 million years ago

Rocks of Permian age are found in Tolo Harbour, mainly on Ma Shi Chau. They are greyish siltstones and mudstones? that contain pyrite minerals (iron sulphide). The sedimentary layers on Ma Shi Chau are commonly deformed by slump folding. Several marine fossils have been identified in the siltstones and mudstones, which have confirmed a Permian age for the rocks and indicate that the rocks were originally deposited in a near-shore tidal flat environment.

Between 250 and 200 million years ago, there was a major tectonic event in China, possibly resulting from major plate reorganisation. This was accompanied by the intrusion of granite magmas. The older rocks in Hong Kong were strongly deformed.

From about 200 to 80 million years ago, a convergent margin tectonic setting developed along the southeastern coast of China. In the Hong Kong region, active volcanoes erupted ash and lava between about 165 and 140 million years ago.

Mudstone of the Tolo Channel Formation

Early Jurassic Tolo Channel Formation - fossil-bearing siltstone and mudstone
(around 200 to 190 million years ago)

Early Jurassic rocks occur as small exposures at Sham Chung, Fung Wong Wat and Tai Tong. They consist of grey to greyish white thinly bedded siltstone and mudstone with lenses of sandstone. In 1924, the first fossil in Hong Kong, an ammonite (Hongkongites hongkongensis), was discovered embedded in the mudstone on the northern shore of Tolo Channel. This confirmed the age as Early Jurassic. The sediments were probably deposited in a shallow marine, sub-tidal environment.

Figure 10: Sandstone of the Tai O Formation

Middle Jurassic Tai O Formation - sandstone and siltstone
(around 190 to 180 million years ago)

The Tai O Formation is exposed along the coast from Tai O to Sham Wat Wan in the western part of Lantau Island. These sedimentary rocks include alternating layers of sandstone and siltstone and show a variety of sedimentary structures such as cross bedding and shrinkage cracks. Plant fossils have also been found in the Tai O Formation, confirming the age as Middle Jurassic. The sediments were probably deposited on an alluvial plain.

Mesozoic Volcanism and Plutonism

Evidence for the oldest volcanoes in Hong Kong occurs in the Tuen Mun area, where a relatively small volume of volcanic ash and lavas rich in calcium, sodium, iron, and magnesium aluminium silicate minerals are exposed. Preliminary radiometric dating of these rocks suggests that they are about 180 million years old. They probably represent the remnants of a chain of andesitic stratovolcanoes that developed along the southeastern coast of China after the onset of a convergent margin tectonic setting in the Early to Middle Jurassic Period (200 to 175 million years ago).

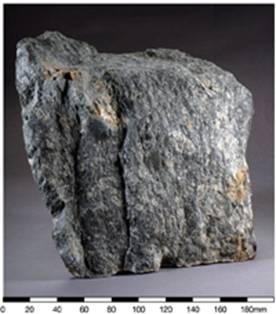

Andesite lava of the Tuen Mun Formation

Middle Jurassic Tuen Mun Formation - andesite lava
(around 180 million years ago)

The Tuen Mun Formation comprises andesitic volcanic rocks and volcaniclastic sedimentary rocks that are distributed along the Tuen Mun Valley. Andesite lava is common in the upper part of the formation. The andesite is dark grey, very fine-grained and commonly shows metamorphic foliation. Sporadic epidote mineralisation gives the rock a greenish colour.

As the convergent margin matured, the subduction zone migrated southeastwards, and volcanoes of a slightly different type and composition soon developed. Volcanic ash and lava rich in dominantly silica (quartz), potassium, sodium and iron aluminium silicate minerals were erupted from large caldera-type volcanoes during the major period of volcanic activity that affected Hong Kong between 165 and 140 million years ago. Eruptions occurred in four distinct episodes: 165-160 million years, 148-146 million years, 143-142 million years and 140 million years, and were accompanied by the intrusion of large granite plutons.

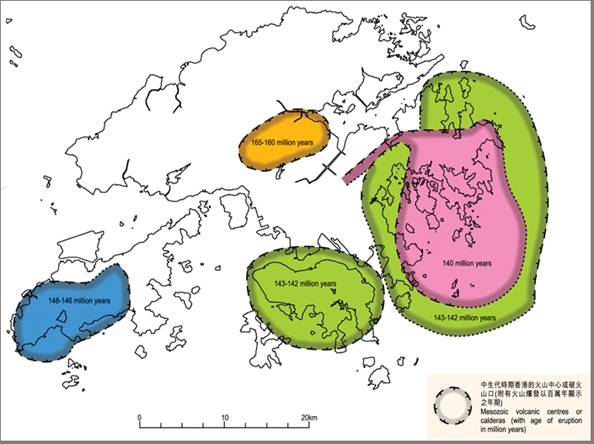

Inferred locations of the Mesozoic volcanic centres or calderas in Hong Kong

Major Volcanic Episodes

165-160 million years

The first major episode of eruption formed much of the volcanic rock exposed in the central New Territories. These rocks are dominantly crystal-rich ashes containing abundant rock fragments. The volcanic eruptions were very violent, and there is very little evidence of any lava flows. Although the caldera that produced the ash has long since disappeared, its approximate location can be determined from the concentration of volcanic vent-type materials and the associated plutonic rocks. Volcanic vent materials and related plutonic bodies form a discontinuous, northeast-oriented ring-like structure that probably marks the original caldera boundary. Northeast-trending faults, subparallel to the convergent margin, probably controlled the shape and size of the caldera.

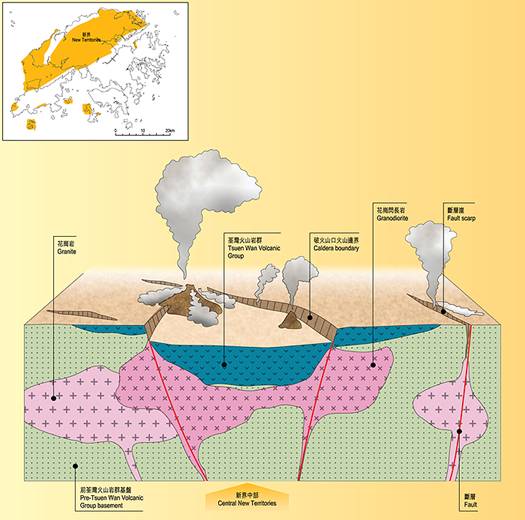

Schematic representation of caldera development and related subvolcanic intrusions between 165 to 160 million years ago (Insert map indicates the distribution of igneous rocks in Hong Kong associated with this volcanic episode)

Coarse ash crystal tuff of the Tsuen Wan Volcanic Group

Middle Jurassic Tsuen Wan Volcanic Group - coarse ash crystal tuff
(164 to 160 million years ago)

The Tsuen Wan Volcanic Group is mainly exposed in the northeastern and northwestern New Territories. The dominant rock type is coarse ash crystal tuff, which is composed of crystal fragments of quartz, feldspar, hornblende and biotite, locally containing rock fragments. The volcanic ash was erupted from a nearby volcanic centre.

Tuff breccia of the Tsuen Wan Volcanic Group

Middle Jurassic Tsuen Wan Volcanic Group - tuff breccia
(164 to 160 million years ago)

Tuff breccia at Shek Lung Kung comprises angular rock fragments that are up to 6 m in diameter. The rock fragments consist mainly of volcanic rocks with some quartzite and chert. The size and angularity of the fragments suggest that they were deposited close to a volcanic vent.

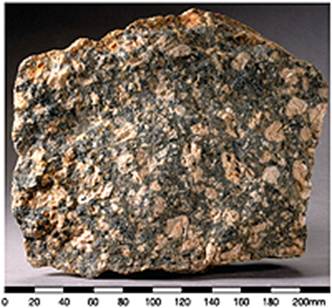

Megacrystic medium-grained granite (Lantau Granite) with a fine-grained aplite vein

Middle Jurassic Lantau Granite - megacrystic medium-grained granite

The Lantau Granite occurs mainly on Lantau Island, but can also be found as isolated outcrops in other places, such as Tuen Mun, the Soko Islands, and Lamma Island. The Lantau Granite is grey in colour and contains quartz, plagioclase feldspar and alkali feldspar in roughly equal proportions, as well as hornblende and biotite. The minerals are generally medium-grained, although very large crystals (megacrysts) (5 ?5 mm) of alkali feldspar are present, giving the rock what is termed a megacrystic texture.

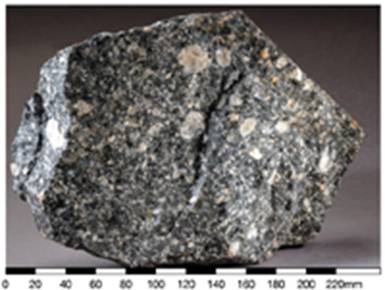

Porphyritic fine-grained granodiorite
(Tai Po Granodiorite)

Middle Jurassic Tai Po Granodiorite - porphyritic fine-grained granodiorite

The Tai Po Granodiorite occurs mainly in the central New Territories and on Tsing Yi, and also as discontinuous outcrops in the central and southern parts of Hong Kong. The rock contains quartz, feldspar with subordinate biotite and hornblende minerals. The grain sizes of some of the crystals are relatively larger than that in the groundmass, giving the rocks an inequigranular (porphyritic) texture. Compared with granite, granodiorite contains slightly less quartz, and plagioclase is more dominant than alkali feldspar.

148-146 million years

Further migration of the convergent margin southeastward led to a shift in focus of volcanism towards the southeast and towards the development of stronger northwest-southeast tensional forces. A major new volcanic caldera developed in the area that is now the central part of Lantau Island. This caldera was fed from a deep magma chamber, with the magma injected along dykes.

A granite body in the vicinity of Sha Tin represents the remnants of the magma chamber, while numerous east-northeast and northeast-trending dykes on northeast Lantau Island, Ma Wan and Tsing Yi represent the feeder dyke plumbing system of the volcano. Measurement of the width of the dyke complex suggests that approximately 6 km of northwest-southeast crustal extension took place over about 1.5 million years.

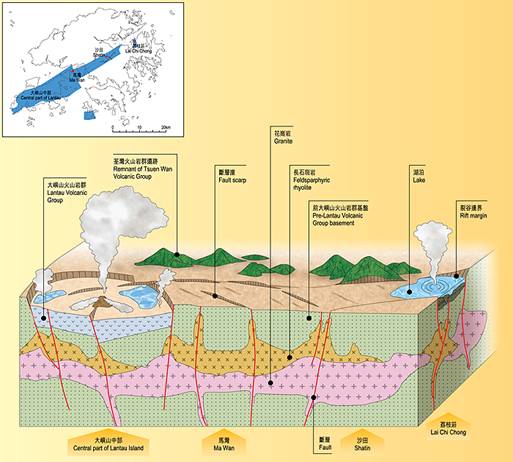

Schematic representation of caldera development and related subvolcanic intrusions between 148 to 146 million years ago (Insert map indicates the distribution of igneous rocks in Hong Kong associated with this volcanic episode)

Compared with the earlier volcanic episode, the volcanic activity appears to have been hotter, less crystal-rich, and more violent. In places, the volcanic ash was so hot that it fused together to form lava. This process, called welding, is thought to be the origin of some of the banded volcanic rocks on Lantau Island.

Tuff of the Lantau Volcanic Group

Late Jurassic Lantau Volcanic Group - rhyolite lava and tuff
(148 to 146 million years ago)

The Lantau Volcanic Group is exposed on Lantau Island and at Lai Chi Chong. The volcanic rocks on Lantau Island? general contain crystals of quartz and feldspar and display distinct flow structures. They were eitehr erupted as viscous lava flows, or as thick and densely welded volcanic ash flows. The volcanic ash flows were probably derived from explosive volcanic eruptions associated with the collapse of a caldera.

Volcaniclastic rocks of the Lantau Volcanic Group

Late Jurassic Lantau Volcanic Group ?volcaniclastic rocks
(148 to 146 million years ago)

Volcaniclastic rocks comprising well-bedded layers of tuffaceous mudstone, cherty siltstone, sandstone, conglomerate and tuff occur at Lai Chi Chong. Soft sediment deformation structures and flame structures are common. These volcanic sediments were probably deposited rapidly from debris flows onto unconsolidated sediments within a lake that occupied a volcanic depression.

Porphyritic fine-grained granite (Needle Hill Granite)

Late Jurassic Needle Hill Granite - porphyritic fine-grained granite

The Needle Hill Granite forms a northeast-trending elliptical intrusive body on the northwestern side of the Shing Mun Valley. The granite is light pinkish grey in colour and has a porphyritic texture. It contains relatively large crystals of quartz and plagioclase feldspar set in granular fine-grained groundmass.

Feldsparphyric rhyolite (Lantau Dyke Swarm).

Late Jurassic Lantau Dyke Swarm - feldsparphyric rhyolite

On northern Lantau Island and Tsing Yi, feldsparphyric rhyolite dykes occur in a swarm comprising numerous sub-parallel intrusions. The most distinctive feature of the dykes is the presence of large tabular-shaped feldspar crystals that are set in very fine-grained dark groundmass (porphyritic texture). The large crystals, known as phenocrysts, range from 10 to 30 mm in length. The chemical composition of these dykes is similar to granite.

143-142 million years

The scale and intensity of Mesozoic volcanic activity continued to increase as the convergent margin migrated southeastwards. The third major episode of volcanic activity in the Hong Kong region is particularly complex, with the formation of at least two calderas that each erupted volcanic materials of slightly different compositions. Evidence suggests that one caldera, centred on Hong Kong Island, erupted volcanic ash with very little crystal content, while the other caldera, centred in the area of Sai Kung and Long Harbour, erupted volcanic ash with abundant crystal content.

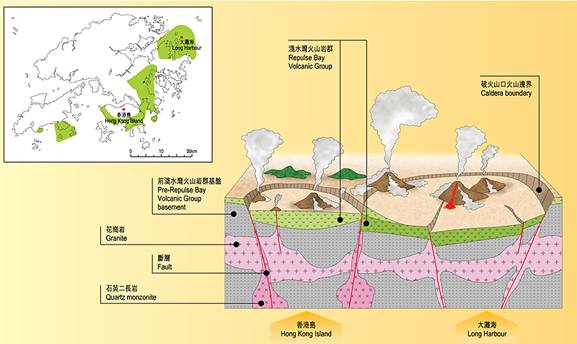

Schematic representation of caldera development and related subvolcanic intrusions between 143 to 142 million years ago (Insert map indicates the distribution of igneous rocks in Hong Kong associated with this volcanic episode).

The two volcanoes probably erupted simultaneously for a period. Very little lava appears to have been erupted from either volcano. Over time, the volcanic eruptions became hotter and increasingly more violent. Both volcanoes probably culminated in caldera collapse following a catastrophic eruption. Today, the caldera margins are marked by discontinuous dyke-like intrusions of plutonic rock

Eutaxitic fine ash vitric tuff of the Repulse Bay Volcanic Group

Early Cretaceous Repulse Bay Volcanic Group - eutaxitic fine ash vitric tuff
(143 to 142 million years ago)

The Repulse Bay Volcanic Group is exposed in southern Hong Kong Island, eastern Kowloon and Sai Kung. One of the major rock types of the volcanic group is fine ash vitric tuff which commonly displays a eutaxitic foliation. Eutaxitic foliation is a welding structure that forms when hot pumice (volcanic glass of rhyolitic composition) is fused, compressed and consequently oriented in the volcanic rock. The welding structure suggests that the volcanic ash was extremely hot during deposition.

Coarse ash crystal tuff of the Repulse Bay Volcanic Group

Early Cretaceous Repulse Bay Volcanic Group - coarse ash crystal tuff
(143 to 142 million years ago)

Coarse ash crystal tuff is the other major rock type of the Repulse Bay Volcanic Group. In Long Harbour (Tai Tan Hoi), the tuff contains crystal fragments of quartz, pink feldspar and biotite minerals, and some rock fragments. Welding structures can be seen in the volcanic rocks. The volcanic group was probably formed by periodic eruptions from a caldera-type volcano at around 143 million years ago.

Porphyritic quartz monzonite (Tong Fuk Quartz Monzonite)

Early Cretaceous Tong Fuk Quartz Monzonite - porphyritic quartz monzonite

Quartz monzonite on Lantau Island is pinkish grey, and porphyritic fine-grained, containing large crystals of feldspar. Quartz monzonite is an intrusive igneous rock containing approximately equal amounts of plagioclase feldspar and alkali feldspar, and a small amount of quartz. Dark coloured minerals, such as biotite and hornblende are also found in the rocks. The quartz monzonite magma probably originated from a deep part of the Earth's crust and intruded along well-defined conduits (such as faults).

140 million years

The fourth and final episode of volcanic activity in Hong Kong is marked by the development of a large caldera volcano centred in the Rocky Harbour area, which was fed from northeast-trending fissure dykes along its northern and southern margins. Eruptions were dominated by large volumes of crystal-poor volcanic ash that accumulated as thick layers, which are, in places, strongly fused together. Fusing indicates that the eruptions were extremely hot.

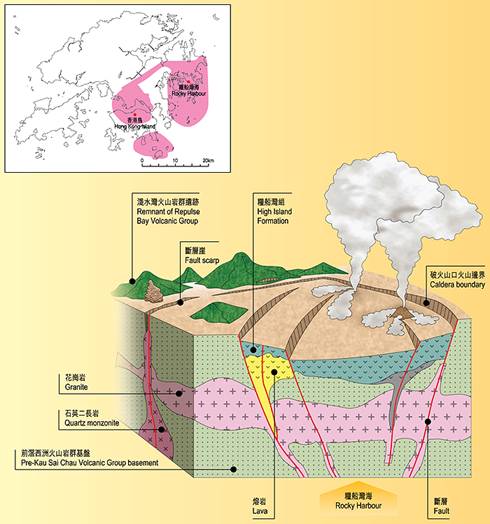

Schematic representation of caldera development and related subvolcanic intrusions 140 million years ago (Insert map indicates the distribution of igneous rocks in Hong Kong associated with this volcanic episode).

The tectonic setting of Hong Kong appears to have been strongly back-arc extensional as the convergent margin continued to shift farther southeastwards. The final volcanic episode culminated with one extremely explosive eruption associated with caldera collapse. Following the caldera collapse, an enormous volume of ash, with a minimum thickness of 400 metres, accumulated in the volcanic depression. The ash slowly cooled to form the spectacular six-sided columns of rock seen at the East Dam of High Island Reservoir. This cataclysmic eruption marked the end of Mesozoic volcanism as recorded in the Hong Kong region.

Rhyolite lava of the Kau Sai Chau Volcanic Group

Early Cretaceous Kau Sai Chau Volcanic Group - rhyolite lava and tuff
(141 to 140 million years ago)

Rhyolite lava and tuff of the Kau Sai Chau Volcanic Group is present in Sai Kung East Country Park and on the Clear Water Bay Peninsula. The volcanic rock is dark grey, very fine-grained with tabular shaped feldspar crystals and commonly shows flow banding. Flow banding was created by the laminar flow of a viscous magma and/or densely welded volcanic ash across the ground surface. The lava and volcanic ash were probably erupted from a fissure-like volcano located along a fault.

Fine ash vitric tuff of the Kau Sai Chau Volcanic Group

Early Cretaceous Kau Sai Chau Volcanic Group - fine ash vitric tuff
(141 to 140 million years ago)

At High Island and on the Ninepin Islands, fine ash vitric tuff of the Kau Sai Chau Volcanic Group is present in the form of hexagonal columns. The tuff is slightly reddish in colour, very fine-grained and contains crystal fragments of pink feldspar. These columns were developed when the hot volcanic ash was ponded, cooled and contracted. The volcanic rocks were probably formed from a very explosive eruption of a large caldera-type volcano about 140 million years ago.

Equigranular medium-grained granite (Kowloon Granite).

Early Cretaceous Kowloon Granite - equigranular medium-grained granite

The Kowloon Granite forms a roughly circular intrusive body centred on Victoria Harbour. The granite is generally medium-grained equigranular (i.e. crystals are of roughly equal grain size ranging between 1 to 3 mm) and has a pinkish grey colour. It contains quartz, plagioclase feldspar, alkali feldspar and biotite.

Pegmatite

Pegmatite

Pegmatite occurs in dykes, lenses or veins near the margins of granitic intrusions. It comprises a very coarse-grained igneous rock with individual crystals up to 20 mm in size. The constituent minerals are mainly feldspar, quartz and muscovite, but may also include pyrite and chlorite.

Aplite vein intruding medium-grained granite

Aplite

Aplite is a very fine-grained granitic rock that generally occurs as veins and dykes in granitic rocks. The grain size of individual minerals is generally less than 1 mm, and the rock shows a sugary texture.

Greisenised granite

Greisenised granite

Greisenised granite has an average grain size of 1 mm and exhibits a sugary texture. It comprises mainly quartz and muscovite, which gives it a shiny appearance. Near Devil's Peak in eastern Kowloon, fine-grained granite has been altered to greisenised granite by hot and mineral-rich fluid (metasomatism).

Mafic / intermediate dyke

Mafic and intermediate dykes

Mafic and intermediate dykes are widespread throughout Hong Kong. They are dark grey in colour and generally form narrow dykes of basaltic andesite less than 1m wide. Geochemically, they contain significantly less silica (SiO2) than the granitic rocks.

Mesozoic Post-volcanic and Cenozoic Period

Between about 140 and 50 million years ago, the Hong Kong region was part of a landmass. Tectonically, the region was relatively stable, except for the development of several block-faulted basins. The climate was hot and dry.

Siltstone of the Pat Sin Leng Formation

Early Cretaceous Pat Sin Leng Formation - conglomerate, sandstone and siltstone
(around 140 to 100 million years ago)

The Pat Sin Leng Formation conglomerate occurs in the northeastern New Territories where it forms a prominent south facing escarpment, the Pat Sin Leng. The conglomerate is greyish white in colour, and comprises subrounded pebbles of volcanic rocks, mudstone and reddish sandstone. The siltstone is reddish purple in colour, and is thinly bedded. These pebbles were originally deposited in river channels soon after the cessation of volcanic activity in Hong Kong during the Early Cretaceous.

Sandstone of the Port Island Formation

Late Cretaceous Port Island Formation - conglomerate and sandstone
(around 100 million years ago)

On Port Island, reddish brown layers of conglomerate and sandstone occur. Cross-bedding, created by water currents, is developed in the sandstone. The sediments were probably deposited in river channels.

Breccia of the Kat O Formation

Late Cretaceous Kat O Formation - breccia
(around 100 million years ago)

The Kat O Formation is exposed on several scattered outlying islands in the northeastern New Territories, including Crooked Island and Ap Chau. It comprises a sequence of breccia, conglomerate, sandstone and siltstone, cemented by calcite minerals. The colour of the sedimentary rocks varies from reddish brown to greyish white. The sediments were probably eroded from a fault scarp and deposited as an alluvial fan.

Siltstone of the Ping Chau Formation

Eocene Ping Chau Formation - siltstone
(around 50 million years ago)

The Ping Chau Formation, which is the youngest rock formation in Hong Kong, comprises thin layers of siltstone, which are gently inclined towards the northeast. Fossil insects as well as bituminised plant fragments have been discovered in the sedimentary rocks. The sediments were originally deposited within a lake that periodically dried up allowing salt crystals (gypsum) to form. However, the salt crystals (gypsum) were later dissolved, leaving behind only the moulds of the original crystals of gypsum in the siltstone. These moulds were subsequently filled by secondary minerals, including aegirine, calcite, zeolite and acmite minerals.

Cherty siltstone of the Ping Chau Formation

Eocene Ping Chau Formation - cherty siltstone
(around 50 million years ago)

A layer of cherty siltstone (up to 1.2 m thick) is well exposed at Lung Lok Shui on the western coast of Ping Chau. Cherty siltstone contains very fine-grained crystalline silica. It is a very strong rock resistant to weathering and erosion.

From 50 million years to about 2 million years ago, there is no record of any sediments being deposited in the Hong Kong region. However, there is strong evidence that this period was one of continued subtropical weathering. The granitic rocks, which had been emplaced about 2 kilometres below the ground surface, had largely been exposed, and were weathered to produce the thick (up to 250 metres) weathering profiles seen today.

From about 5 million years ago to the present, the Eurasian Plate has been in collision with the Philippine Plate, resulting in reactivation of northeast-trending faults in southeastern China.

Quaternary Period

The Quaternary Period, which extends from about 2.6 million years ago to the present-day, is characterised by cyclical climatic changes, during which world sea level periodically fell and rose in response to glacial and interglacial episodes.

During the cooler glacial periods, when sea level was as much as 120 metres lower than today, the coastline was about 100 kilometres south of Hong Kong and large volumes of alluvium were deposited on the exposed areas of former seabed.

Intervening periods of climatic warming led to melting of the ice sheets, which caused the sea level to rise during these interglacial periods. The rising sea flooded across the alluvial sediments, depositing marine mud over much of Hong Kong waters, with coarser, more sandy sediments accumulating in areas of strong tidal currents.

Thus, although Hong Kong was never covered by glacial ice, the stratigraphy of the offshore sediments provides indirect evidence of the major fluctuations in global climate over the Quaternary period.

Following the end of the last glacial period, about 11,000 years ago, sea level began to rise rapidly, probably reaching its present height in the Hong Kong region about 8,000 years ago.

Quaternary superficial deposits in Hong Kong primarily consist of hillslope deposits (colluvium), river deposits (alluvium), and offshore deposits (mud and sand). About 14% of the land surface of Hong Kong is covered by Quaternary deposits greater than 2 m thick. Man-made deposits, such as reclamations, constitute about 6% of the present land area of Hong Kong (1,105 km2).

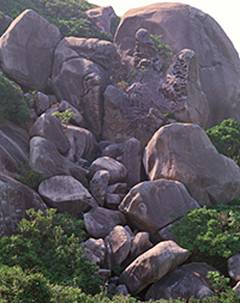

Bouldery colluvium occupying a drainage line in Chung Hom Kok, Hong Kong Island

Colluvium

A layer of colluvium blankets most of the hillslopes, although in many areas it is very thin (less than 1 m thick). Colluvium comprises a range of grain sizes from fine-grained silt and sand washed down slopes by water, to coarse accumulations of large boulders deposited by landslides. Only deposits of colluvium greater than 2 m thick have been mapped on the Hong Kong Geological Survey maps. These thicker deposits mostly occur on the footslopes.

Colluvium is relatively thick over the granitic rocks, where it is derived from the deep weathered profiles. Colluvium is relatively thin over the volcanic rocks, which have shallow weathered profiles. Colluvium forms extensive deposits at the base of several large hill masses, such as the Lion Rock ridge, the Mid-levels area, the slopes of Fei Ngo Shan, below Castle Peak, Tai Mo Shan, and on Lantau Island.

Alluvium occupying the floor of the Lam Tsuen Valley, New Territories

Alluvium

Alluvium fills most of the stream and river valleys in Hong Kong. Relatively thin, narrow deposits occupy the hillside tributaries, and thicker, more extensive deposits floor the lowland valleys.

Alluvium generally comprises coarse-grained sands and gravels in the river channels and point bars, and fine-grained sediments on the floodplains. Alluvium forms distinctive dendritic patterns on the geological maps of Hong Kong.

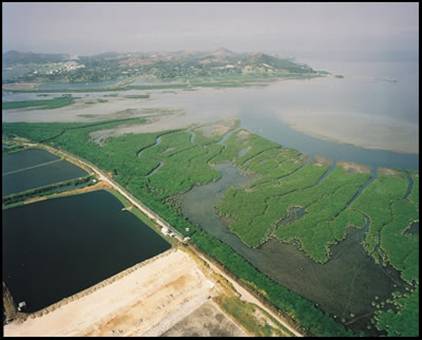

Mudflats with mangroves, Deep Bay

Offshore Superficial Deposits

The seabed in Hong Kong slopes gently to the south and southeast, and is generally covered with a layer of marine mud. The blanket of marine mud has accumulated since the rapid post-glacial rise in sea level that commenced approximately 11,000 years ago. The marine mud overlies older, mostly alluvial, sediments that were deposited by rivers when the sea level was lower.

Sand occurs on the seabed in areas where tidal currents prevent the finer sediments settling. These areas include tidal channels and the gaps between islands. Sand also occurs in the coastal zone where wave action has created beaches and sandbars.

Several wide tidal inlets, such as in Deep Bay and at Starling Inlet, have accumulations of intertidal mud that is covered with mangroves.

Common Rock-forming Minerals

Quartz

• Quartz, which is usually called silica, is one of the most common minerals in the Earth's crust.


• Quartz is made up of silicon dioxide (SiO2)


• Quartz crystals are usually hexagonal and prismatic in shape.


• Pure quartz is colourless, although the presence of impurities may give a range of colours, such as violet, pink and orange.


• Quartz is the raw material for making glass.

Plagioclase feldspar

• Plagioclase feldspar is a sodium- or calcium-rich feldspar. The chemical composition ranges from sodium aluminium silicate, NaAlSi3O8 to calcium aluminium silicate, CaAl2Si2O8.

• Plagioclase feldspar crystals usually occur as stubby prisms.

• Plagioclase feldspar is generally white to grey and has a vitreous lustre.

• Plagioclase feldspar is an important industrial mineral used in ceramics.

Alkali feldspar

• Alkali feldspar is another member of the family of feldspar minerals.


• Alkali feldspar (Potassium aluminium silicate (K,Na)AlSi3O8) are rich in alkali metal ions.


• Alkali feldspar crystals usually occur as stubby prisms.


• Alkali feldspar is commonly pink to white.


• Alkali feldspar is used as raw material to make porcelain.

Biotite.

Muscovite

• Micas are a family of silicate minerals.

• Micas are made up of varying amounts of potassium, magnesium, iron, as well as aluminium, silicon and water.

• Micas form flat, book-like crystals that split into individual sheets, separating into smooth flakes along the cleavage planes.

• They are common minerals in intrusive igneous rocks, and can also be found in sedimentary and metamorphic rocks.

• Biotite is a dark, black or brown mica; muscovite is a light-coloured or clear mica.

Hornblende

• Amphiboles are a family of silicate minerals.

• Amphibole minerals generally contain iron, magnesium, calcium and aluminium as well as silicon, oxygen, and water.

• Amphiboles form prismatic or needle-like crystals.

• Amphibole is a component of many igneous and metamorphic rocks.

• Hornblende is a common member of the amphibole group of rock-forming minerals.



Pyroxene

• Pyroxenes are a family of silicate minerals.

• Pyroxene minerals generally contain magnesium, iron, calcium and aluminium as well as silicon and oxygen.

• Pyroxenes form short or columnar prismatic crystals.

• Pyroxene is a component in many igneous and metamorphic rocks.

• Pyroxene crystals are commonly faceted as gemstones. For instance, precious jade (jadeite) is a pyroxene.

Olivine

• Olivine is a silicate mineral.

• Olivine ((Mg,Fe)2SiO4) contains iron and magnesium.

• Olivine is a green, glassy mineral.

• Olivine is common in mafic and ultramafic rocks, but has not been found in Hong Kong.

• Clear and transparent olivine crystals are commonly faceted as gemstones.

Calcite

• Calcite is a carbonate mineral.

• Calcite is made up of calcium carbonate (CaCO3).

• Calcite is generally white to clear, and is easily scratched with knife.

• Calcite is a common sedimentary mineral that is the major component of calcareous sedimentary rocks such as limestone. Metamorphism of limestone produces marble.

Thanks are due to Hong Kong Geological Survey, Planning Division, Civil Engineering and Development Department for kindly allowing us to use their published geological information in this virtual geological exhibition on our website.
